Energy Storage Connector 120A

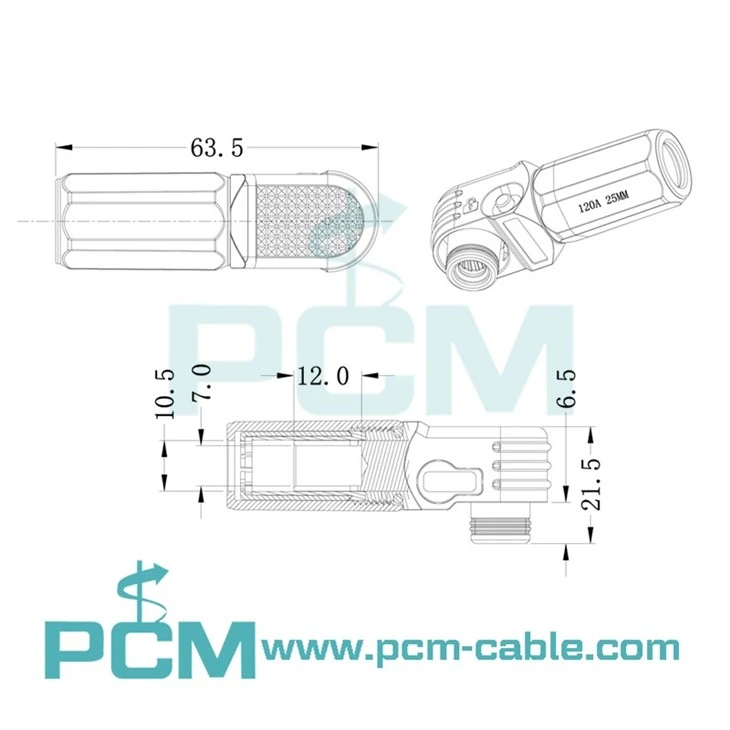

120A Battery Storage Connector size dimensions
120A Power Connector Black Battery Storage High Voltage Plug
120A Energy Storage Connector High Current 25mm² Plug
Battery Energy Connector 120A Black Safe High Voltage IP67
High Current 120A Battery Connector Black 1000V Energy Storage
ZOG Cia Txuas 120A
Lub zog hluav taws xob cia yog lub siab - roj teeb tam sim no muaj peev txheej thiab muaj kev nyab xeeb lub zog sib kis hauv cov ntawv thov, EV, thiab kev muaj kev lag luam. Nrog rau ib qho rated tam sim no ntawm 120A thiab 25mm² Cable Tshooj, txuas dub ua kom muaj kev ruaj ntseg nyob rau 1000V DC. Featuring ib qho kev cog lus, tsim muaj zog thiab IP67 Waterproof tiv thaiv, nws yog tsim rau lub neej kev pabcuam ntev hauv kev xav tau ib puag ncig.
Cov lus qhia
| Khoom npe | Cov txuas rau lub zog cia cov tshuab |
| Kos duab No. | PCM - 120A-bl |
| Cov Ntsuas Hluav Taws Xob | 1000V DC |
| Rated tam sim no | 120A |
| Kab ke | 25mm² (4AWG) |
| Radshok Loj | 6.0mm |
| Rwb Thaiv Tsev Wairant | 3000V dc |
| Kev sib cuag | 0.2mΩ |
| Qhov kub nce | 50K |
| TSEV khoom | Nylon Ul94-V0, Dub |
| Khoom siv sealing | Silicone |
| Hlau Lub Cev | Tooj Liab, Nyiaj / Plated |
| Lub caij nplooj ntoo hlav | Kev Tshaj Tawm Loj Tooj Liab, Nyiaj / Kub Plated |
| Mating voj voog | 1000 zaug |
| Kev Tiv Thaiv Qib | Ms67 |
| Kev Ua Haujlwm Temp. | -40 Qib ~ {+125 degree |
Nta
- Kov - pov thawj kev nyab xeeb tsim
- 360℃rotatable Plug rau kev teeb tsa hloov tau
- Kev tsim kho cov compact thiab rugged
- Ntau Yam Kev Xaiv
- Ceev xauv thiab nias - rau - tso me nyuam
- Tub rau khoom - style zawv zawg kev sib txuas, tshem tawm ntawm - chaw xov xwm
- Modular Contransion System rau Kev Pom Zoo Fais Fab
Cov Ntawv Thov
Bess - roj teeb hluav taws xob cia khoom
Txog Peb
Premier cable tshwj xeeb hauv kev muab txhim khu kev qhaKev sib txuas khoom sib txuasTxog siab -} kev siv fais fab. Peb cov khoom lag luam100A rau 350A, nrog cable hla -} ntu los ntawm16 hli rau 95mm², txhawb aVoltage ntau ntawm 1000VDC rau 1500VDCCov. Tsim nrog IP67 Waterproof tiv thaiv, UL94 {}} v0 nplaim taws, thiab kev sib txuas ua kom ruaj khov, thiab cov roj teeb hluav taws xob, thiab muaj hwj chim.
Nrog cov qauv tsim qauv, ntau txoj kev xaiv txiav, thiab xim {{- coded cov tsev tau raws li cov kev xa khoom siv tam sim no ntawm kev faib khoom niaj hnub no. Ntawm Premier Cable, peb tau cog lus los muabCustomized kev daws teeb meemuas ua kom muaj peev xwm muaj peev xwm tam sim no, yooj yim installation, thiab lub neej ntev rau koj cov phiaj xwm kev siv hluav taws xob.
