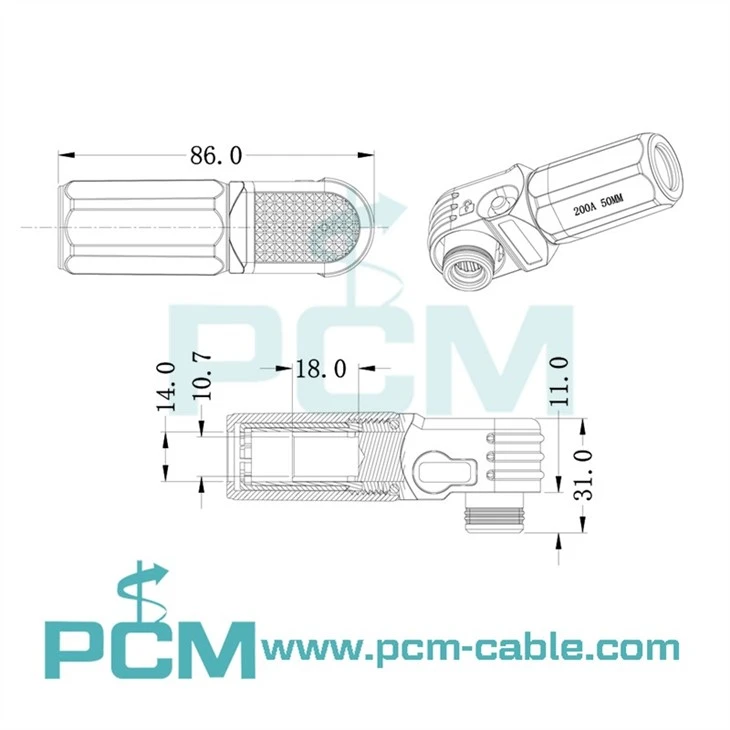

BESS connectors 200A size dimensions drawing

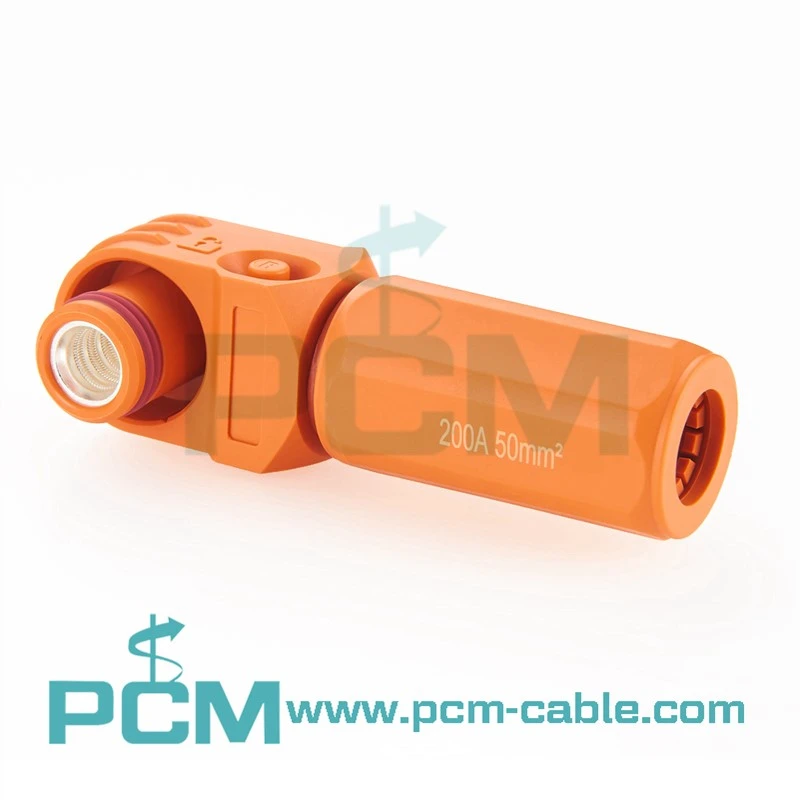

IP67 Energy Battery Storage Connector Plug Male Right Angle 200A 8mm 50mm2

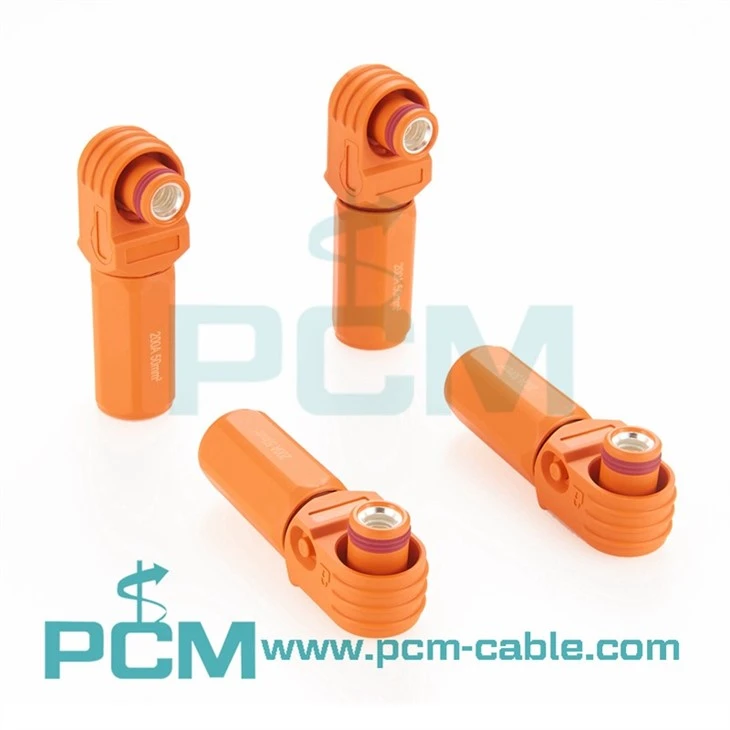

OD 8mm 200A 50m㎡ Energy Storage Battery Terminal Connector

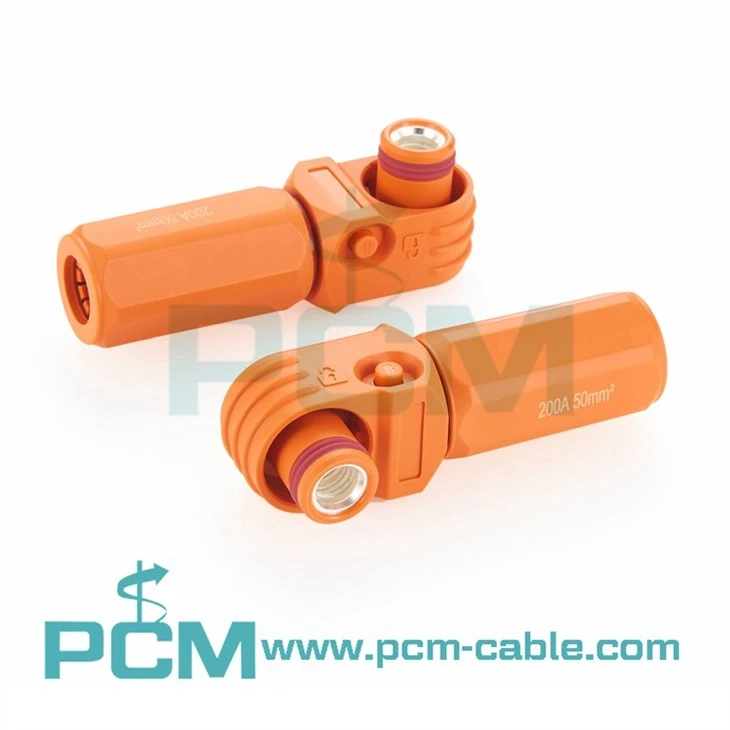

Right Angle 8mm 200A Single Core HV Energy Storage Plug Connector for 50mm² Cable
200A 50mm² High Current Energy Storage Connectors
Premier Cable Co., Ltd yog ib qho ntawm 200a 50mm² siab tam sim no zog cia connectors manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos rau kev lag luam wholesale zoo customized khoom ntawm luv nqi los ntawm peb lub hoobkas. Tiv tauj peb rau kev hais lus thiab qauv dawb.

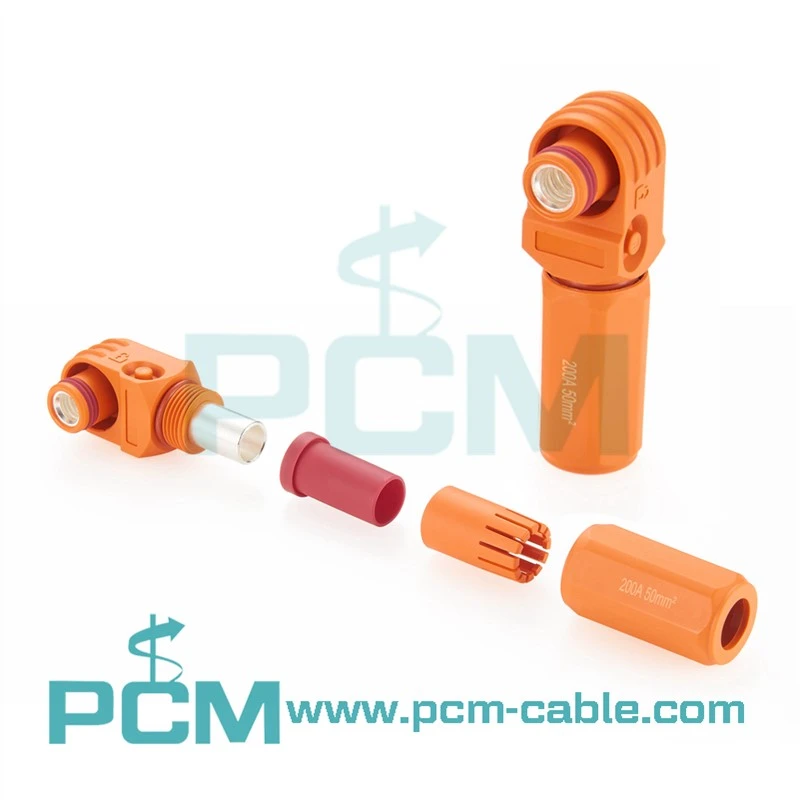

CovPCM-200A-ORqhov tseem ceebkev nyab xeeb thiab siab -voltage visibilitynrog nws ci txiv kab ntxwv vaj tsev, ua rau nws zoo meej rauKev siv lub zog tauj dua tshiab thiab EV roj teeb. Qhov no connector txhawb200A ntawm 1000V DC, nrog lub zog 8.0mm Radsok rau kev ruaj ntseg fais fab kis. Nwswaterproof IP67 thiab silicone - kaw tsimtso cai rau nws khiav lag luam kev ntseeg siab nyob rau hauv hnyav sab nraum zoov tej yam kev mob.
Specifications
| Khoom npe | Lub kaum sab xis 8mm 200A Ib leeg tub ntxhais HV Zog Cia Plug Txuas rau 50mm² Cable |
| DWG No. | PCM-200A-OR |
| Rated Tam sim no | 200A |
| Hla -Section Hlau | 1/0 AWG (50 mm²) |
| Radsok Loj | 8.0mm ib |
| Khoom siv yas | Nylon UL94-V0 (txiv kab ntxwv) |
| Lub nplhaib sealing | Silicone |
| Lub cev hlau | Tooj, Nyiaj / Tin Plated |
| Crown Spring | High Conductivity Copper, Nyiaj / Kub Plated |
| Rated Voltage | 1000V DC fais fab mov |
| Dielectric zog | 3000V DC fais fab mov |
| Tiv tauj Resistance | 0.2 mΩ |
| Mating Cycles | 1000 zaug |
| Kub nce | 50K |
| Waterproof Rating | IP67 |
| Kev khiav hauj lwm Temp. | -40℃rau +125 degree |
Kev nyab xeeb & Ua raws li cov yam ntxwv
- Xim-Coded rau High Voltage:Txiv kab ntxwv vaj tse raws li thoob ntiaj teb cov qauv rausiab - kev txheeb xyuas qhov hluav taws xob.
- Kov -Proof Design:Tiv thaiv cov neeg ua haujlwm thaum lub sijhawm teeb tsa thiab kho.
- Ntev - Lub Sijhawm Kev Ntseeg:Rated rau 1000 mating cycles nrog kev tiv thaiv tsawg heev.
- Huab cua & UV Resistant:Haum rau hnub ci ua liaj ua teb, cua zog cia, thiab ntim ESS systems.
Kev Siv Hluav Taws Xob Txuas Ntxiv
-
Hnub ci & cua zog cia:Txuas siab -voltage modules hauv cov tshuab hluav taws xob faib.
-
Portable & Modular Zog Chav:Ua kom yooj yim xa mus rau hauv cov roj teeb txawb.
-
Industrial EV Cia:Ua kom muaj kev nyab xeeb thiab ua tau zoo siab - tam sim no kev faib tawm hauv cov tsheb fais fab roj teeb arrays.
FAQ
Q1: Puas yog PCM-200A-OR siv tau nrog lwm cov 200A lub zog cia khoom txuas ntawm lub khw?
A1: Yog lawm, nws tau tsim nrog tus qauv Radsok 8.0mm thev naus laus zis, uas tso cai rau nws sib cuam tshuam nrog lwm cov khoom sib txuas ntawm tib lub ntsiab lus.
Q2: Dab tsi yog qhov zoo ntawm lub vaj txiv kab ntxwv?
A2: Lub vaj txiv kab ntxwv feem ntau yog siv rau hauv siab -voltage lossis lub zog cia tshuab los muab qhov qhia meej txog kev nyab xeeb. Nws pab cov kws tshaj lij thiab cov neeg ua haujlwm ceev ceev txheeb xyuas qhov siab - lub zog hluav taws xob thaum lub sijhawm teeb tsa lossis kev saib xyuas.
Q3: Puas yog lub zog cia khoom txuas xav tau cov cuab yeej crimping tshwj xeeb?
A3: Yog lawm, rau kev teeb tsa kom raug, yuav tsum muaj qhov hnyav - lub luag haujlwm crimping cuab yeej siv tau nrog 1/0 AWG (50mm²) xaim. Qhov no ua kom ruaj ntseg hluav taws xob tiv tauj thiab txo qis hluav taws xob poob.
Q4: Lub BESS connector no puas tuaj yeem siv rau hauv kev ceev- them EV systems?
A4: Yog. Ua tsaug rau nws lub peev xwm 200A tam sim no siab thiab qis -kev tiv thaiv Radsok tiv tauj tsim, PCM-200A-OR yog zoo- haum rau cov chaw nres tsheb ceev, EV roj teeb modules, thiab lwm yam kev daws teeb meem.
Q5: Dab tsi yog qhov kev pab cuam lub neej ntawm siab -tam sim no lub zog cia khoom txuas?
A5: Thaum txhim kho kom raug, lub connector muaj ntau txhiab mating cycles, ua rau nws haum rau nquag txuas / disconnect daim ntaub ntawv.
