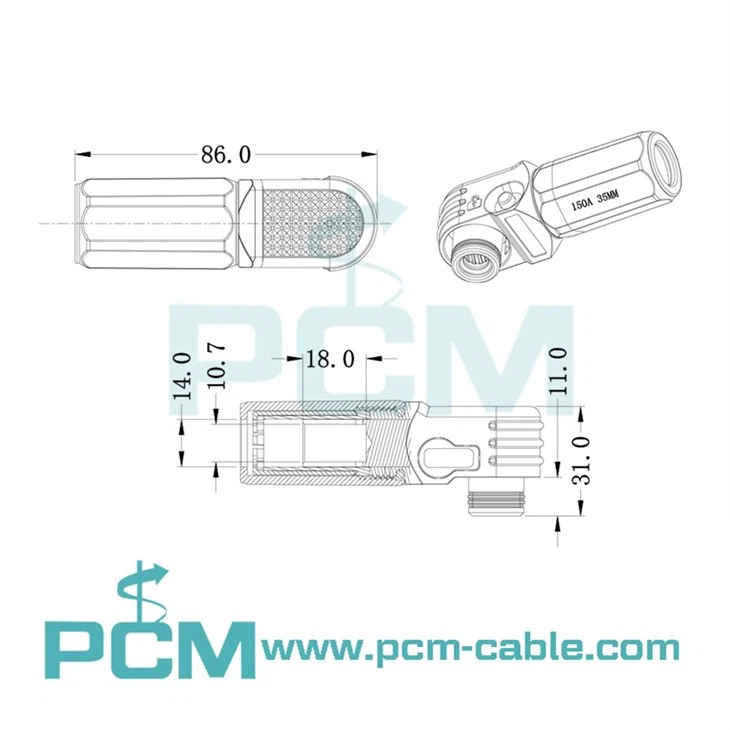

150A Battery Storage Connector size dimensions
150A Energy Storage Connector High Current 35mm² Plug
150A Power Connector Black Battery Storage High Voltage Plug

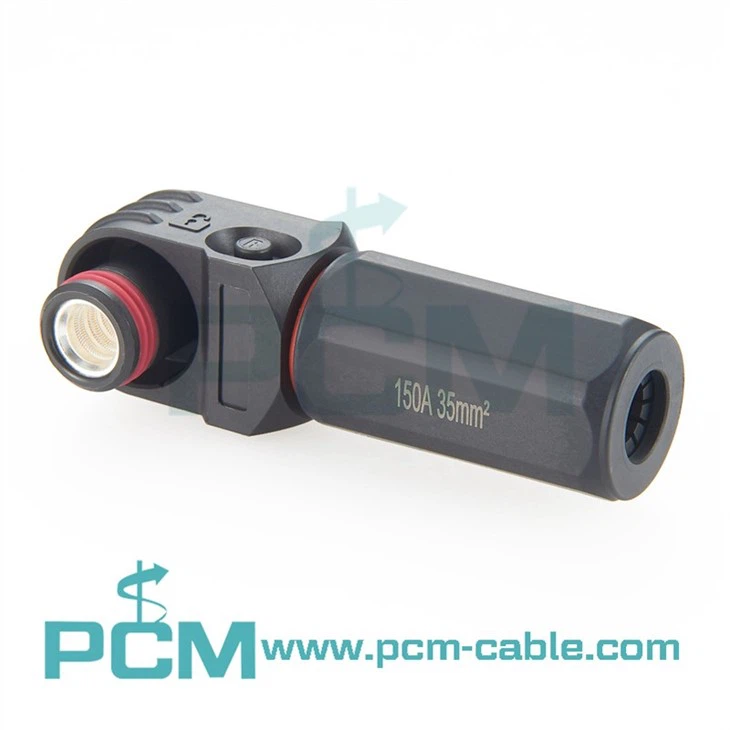

High Current 120A Battery Connector Black 1000V Energy Storage
Battery Energy Connector 150A Black Safe High Voltage IP67
Roj teeb Lub zog hluav taws xob Cia Cov Qhuam 150A
No150A Roj Teeb Zog Khoom Txuasyog tsim los rau high -} Cov ntaub ntawv siv hluav taws xob xws li cov roj teeb, txuas ntxiv mus ntxiv rau cov khoom lag luam, thiab kev muaj backup tshuab. Nrog ib tug rated tam sim no ntawm150A, Txhawb35mm² (24AWG)cable thiab a8.0 hli radsok, nws ua kom muaj zog sib kis. Qhov UL94 {- v0 nplaim taws-retardant Nylon Vaj Tsev thiab IP67 Waterproof Faib thiab kev nyab xeeb hauv kev xav tau ib puag ncig.
Cov lus qhia
| Khoom npe | Zog roj teeb cia txuas txoj cai angled |
| DWG NO. | PCM -} 150A-bl |
| Rated tam sim no | 150A |
| Hla - Ntu xaim | 35mm² (24AWG) |
| Radshok Loj | 8.0 hli |
| Yas Khoom | Nylon Ul94-V0 (Dub) |
| Sealing nplhaib | Silicone |
| Hlau Lub Cev | Tooj Liab, Nyiaj / Plated |
| Lub caij nplooj ntoo hlav | Kev Tshaj Tawm Loj Tooj Liab, Nyiaj / Kub Plated |
| Cov Ntsuas Hluav Taws Xob | 1000V DC |
| Dielectric lub zog | 3000V dc |
| Kev sib cuag | 0.2 mΩ |
| Mating voj voog | 1000 zaug |
| Qhov kub nce | 50K |
| Kev Ntsuas Dej Tsis Muaj Dej | Ms67 |
| Kev Ua Haujlwm Temp. | -40 Qib rau +125 degree |
Cov Ntawv Thov
Tus150A Roj Teeb Zog Khoom Txuasyog qhov zoo tagnrho rauroj teeb lub nruab, Lub Zog Muaj Zog, Txuas Ntxiv Lub Zog, thiabTsheb fais (EV) pob khoomCov. Nws lub siab - tam sim no 150a muaj peev xwm thiab IP67 Waterproof tsim ua kom muaj kev sib txuas tau zoo hauv- voltage DC daim ntawv thov, thaum lub zog 35 hli cable sib xyaw thiab modular Suer - style cov style khoom teeb tsa thiab txij nkawm. Zoo meej rauHnub Ci Thiab Cua Zog Cia, UPS tshuab, thiab lwm yamsiab - fais fab zog cia ntaub ntawv, cov txuas txuas no muab kev nyab xeeb, ruaj, thiab muaj zog tau sib kis thoob plaws ntau hom kev lag luam thiab kev lag luam kev lag luam.
Cim npe nrov: Roj teeb Lub zog hluav taws xob cia cov txuas txuas txuas Txuas Cia Ntxiv Khoom Siv 150A, cov chaw tsim khoom, Hoobkas, khoom lag luam, siv, qauv dawb
