CAN Terminator nrog 120 Ohm Resistor

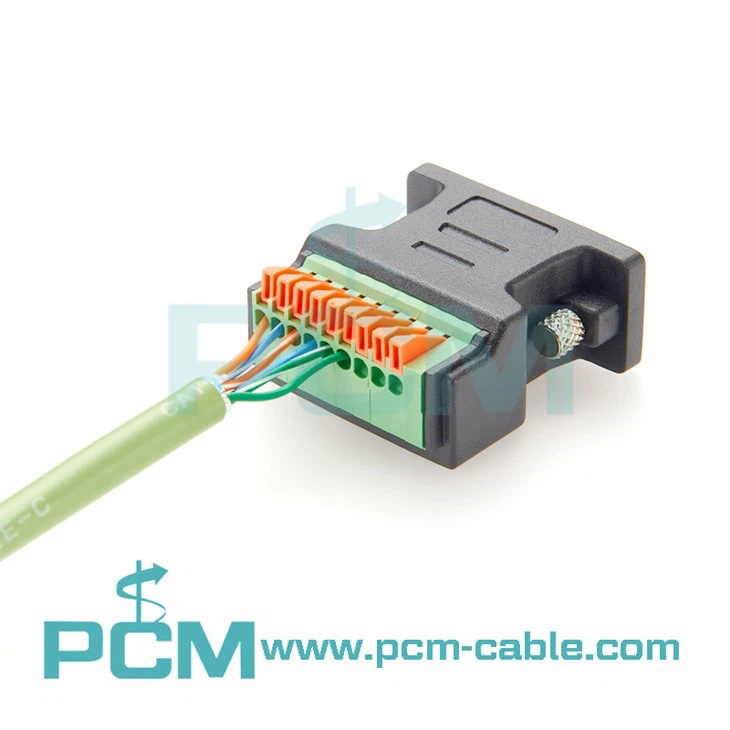

CAN Terminator nrog 120 Ohm Resistor yog ib qho adapter tshwj xeeb uas tsim los rau CAN tsheb npav network thiab tsim los ua kom yooj yim rau kev teeb tsa thiab kev saib xyuas ntawm CAN tsheb npav. Qhov no CAN Terminator Adapter converts DB9 interface rau hauv lub davhlau ya nyob twg thaiv txuas thiab muab 120 ohm kev txiav tawm tsis kam los xyuas kom muaj kev ruaj ntseg thiab kev ntseeg siab ntawm CAN tsheb npav network.



Nta



• DB9 Poj niam Connector: Qhov no CAN Bus Adapter nta tus qauv DB9 Poj Niam connector, haum rau ntau lub tsheb npav CAN.
• Terminal Thaiv Connector: Nrog lub davhlau ya nyob twg thaiv txuas, cov neeg siv tau yooj yim txuas thiab txiav cov xov hlau sai thiab yooj yim.
• 120 ohm terminating resistor: Lub built-in 120 ohm terminating resistor ua kom cov teeb liab zoo thiab ruaj khov ntawm CAN tsheb npav network.
• Yooj yim Installation: Qhov no DB9 Terminal Block nrog 120 Ohm termination resistor ua rau cov txheej txheem kev teeb tsa yooj yim dua, cov neeg siv tsis tas yuav tsum tau solder, tsuas yog txuas cov xov hlau uas tsim nyog.



Specifications



Khoom npe	CAN Bus Terminator - 120 Ohm Termination Resistor

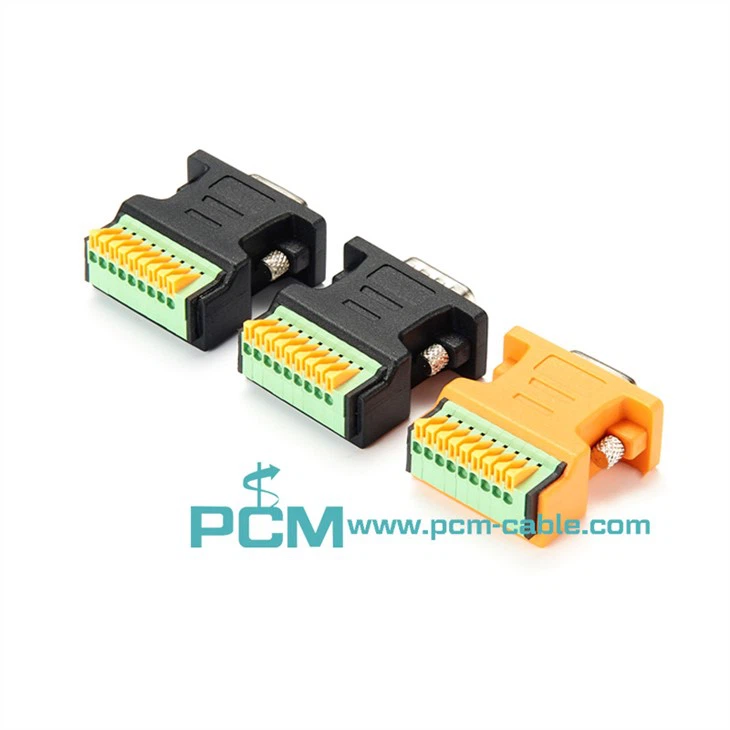

Qauv	TB-99 TSIS MUAJ Terminator
Interface	9-Pin D-sub poj niam, 9-Pin caij nplooj ntoos hlav hom davhlau ya nyob twg
Terminal Pitch	2.54mm ib
Wire AWG	14-28 AWG
Ua haujlwm kub	-40 degree rau 115 degree (-40 degree F txog 239 degree F)
Push Button davhlau ya nyob twg yooj yim siv thiab rov xaim
Tsis xav tau Soldering lossis Screw Drivers
120 Ohm termination resistor ntawm CAN_H thiab CAN_L (pin 2 thiab tus pin 7)
Nco tseg: Tus nqi tiv thaiv thiab tus naj npawb ntawm cov resistors tuaj yeem kho raws li cov neeg siv khoom xav tau.



Daim ntawv thov



Qhov no DB9 rau 9-Pin Terminal Block Adapter tuaj yeem siv tau qhov twg CAN cable lossis CAN node ntawm qhov kawg tsis muaj kev txiav tawm sab hauv.





Siv tau scene



Automotive electronic systems;
Industrial tswj system;
Internet ntawm Yam (IoT) cov khoom siv;
Real-time cov ntaub ntawv sau thiab kis tau tus mob;

...
