RF Cable Assemblies MQ4 Pawg Jumper 1/4 Hauv HF 4310m





MQ4 Cluster Connector yog dab tsi?



Cluster connector MQ4 yog hom tshwj xeeb ntawm RF connector tsim los tswj RF cables ntawm lub hauv paus chaw nres tsheb kav hlau txais xov. Ib tug multi-coaxial cable connector feem ntau integrates ntau ports nyob rau hauv ib tug connector, xws li 4 los yog ntau tshaj, zoo tswj thiab txuas RF signals. Cov khoom sib txuas no yog siv rau hauv cov chaw nres tsheb niaj hnub thiab kav hlau txais xov, tshwj xeeb tshaj yog nyob rau hauv daim ntawv thov scenarios uas yuav tsum tau ua ntau yam kev tawm tswv yim ntau-tso tawm (MIMO) thev naus laus zis lossis lwm yam kev sib txuas RF.



Specifications



Khoom npe	1/4 "Superflex Jumper Cable MQ4 Plug Rau 4.3-10
Khoom qeb	RF cable sib dhos
Connector A	MQ4 los yog MQ5 connector, txiv neej los yog poj niam, ncaj, ntsia hlau version
Connector B	4.3-10, 7-16, NEX10, Type N
Cable ntev	0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m, 5m
Hom kab	Sucofeed 1/4 nyob rau hauv siab flex cross-linked nrog PE tsho
Tiv tauj cov ntaub ntawv	Copper alloy
Tiv tauj plating	Nyiaj
Impedance	50 awm
Ntau zaus	0 Hz rau 6 GHz
Kev ntsuas IP	IP68
Compatible nrog	HUBER+SUHNER LIS-C5X-11MQ4X-4X11431X-00500-53, LIS-C5X-11MQ4X-4}X11431X-01000-53, LIS-C5X-11MQ4X-4X11431X-01500-53, LIS-C5X-11MQ4X-4X11431X-02000-53, LIS-C5X-11MQ4X-4X11431X-02500-53, LIS-C5X-11MQ4X-4X11431X-03000-53, LIS-C5X-11MQ4X-4X11431X-04000-53, LIS-C5X-11MQ4X-4X11431X-05000-53



Muaj nuj nqi



Lub luag hauj lwm ntawm Cluster connector MQ4 plug rau 4.3-10 RF Cable Assemblies yog tsuas yog los txuas thiab tswj cov complex RF teeb liab thaiv nyob rau hauv lub hauv paus chaw nres tsheb kav hlau txais xov system. Tshwj xeeb, nws plays lub luag haujlwm tseem ceeb hauv qab no:



• Cov teeb liab kis tau tus mob thiab kev sib txuas:



Qhov kev sib txuas cable no tuaj yeem ntseeg tau txuas RF teeb liab cable ntawm lub hauv paus chaw nres tsheb kav hlau txais xov thiab cov khoom siv RF kom ntseeg tau tias cov teeb liab kis tau zoo. Los ntawm kev tsim ntawm 1/4 "superflex jumper cable MQ4 plug rau 4.3-10 txiv neej, kev ruaj ntseg teeb liab txuas tau tiav, txo qhov kev pheej hmoo ntawm teeb liab attenuation thiab distortion.



• Multi-port tswj:



MQ4 plug tsim tso cai rau kev sib koom ua ke ntawm ntau qhov chaw nres nkoj, xws li 4 lossis ntau dua, uas ua rau nws tswj hwm ntau cov kab RF tib lub sijhawm thiab ua kom yooj yim RF thaiv cov txheej txheem. Qhov no yog qhov tshwj xeeb tshaj yog rau kev txhawb nqa ntau qhov kev tawm tswv yim ntau-tso tawm (MIMO) thev naus laus zis lossis lwm yam kev siv RF muaj peev xwm.



• Hloov mus rau ib puag ncig complex:

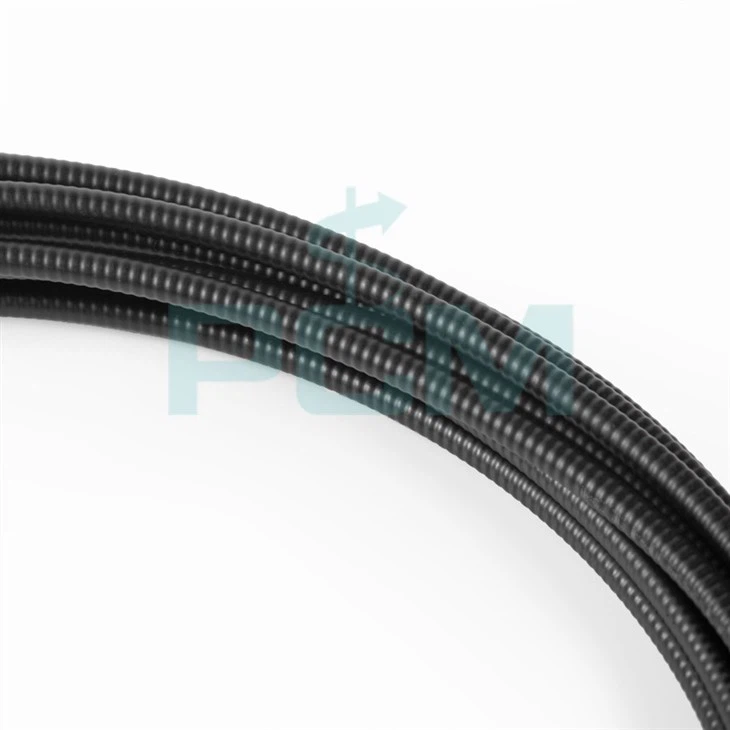

Vim yog kev siv cov corrugated coaxial cable (X-hom cross-linking), lub RF cable sib dhos no tuaj yeem ua haujlwm ruaj khov nyob rau hauv ntau yam hnyav ib puag ncig thiab muaj kev ruaj khov thiab kev ntseeg siab. Nws tuaj yeem tiv thaiv qhov chaw nyuaj hauv cov chaw nres tsheb hauv paus thiab kav hlau txais xov, xws li qhov chaw sab nraum zoov thiab qhov kub thiab txias.



• System optimization kev ua tau zoo:



Los ntawm kev ua kom zoo rau kev tswj hwm thiab kev sib kis ntawm RF cov cim, qhov RF cable sib dhos MQ4 pawg jumper pab txhim kho tag nrho kev ua tau zoo thiab kev ua haujlwm ntawm lub hauv paus chaw nres tsheb. Nws ua kom lub teeb liab ruaj khov thiab sib xws, yog li txhawb nqa kev ua haujlwm du thiab ua kom zoo tshaj plaws hauv lub network.
